EY10 Go Gauge for Caps 7006-7-1

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: 7006-7-1

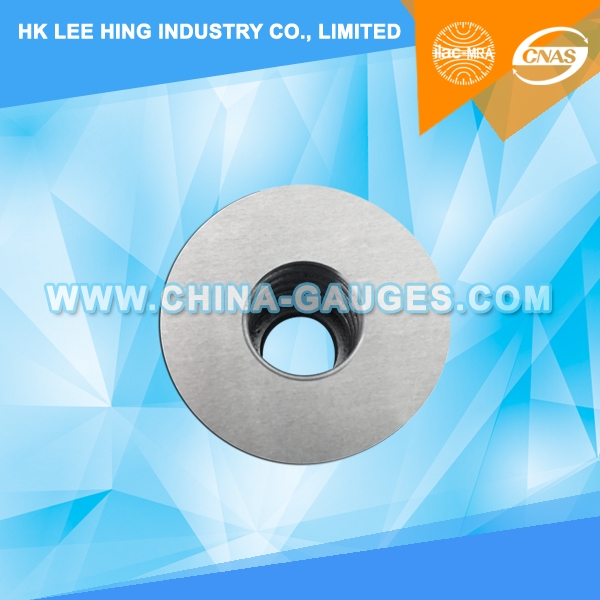

EY10 Go Gauge for Caps 7006-7-1

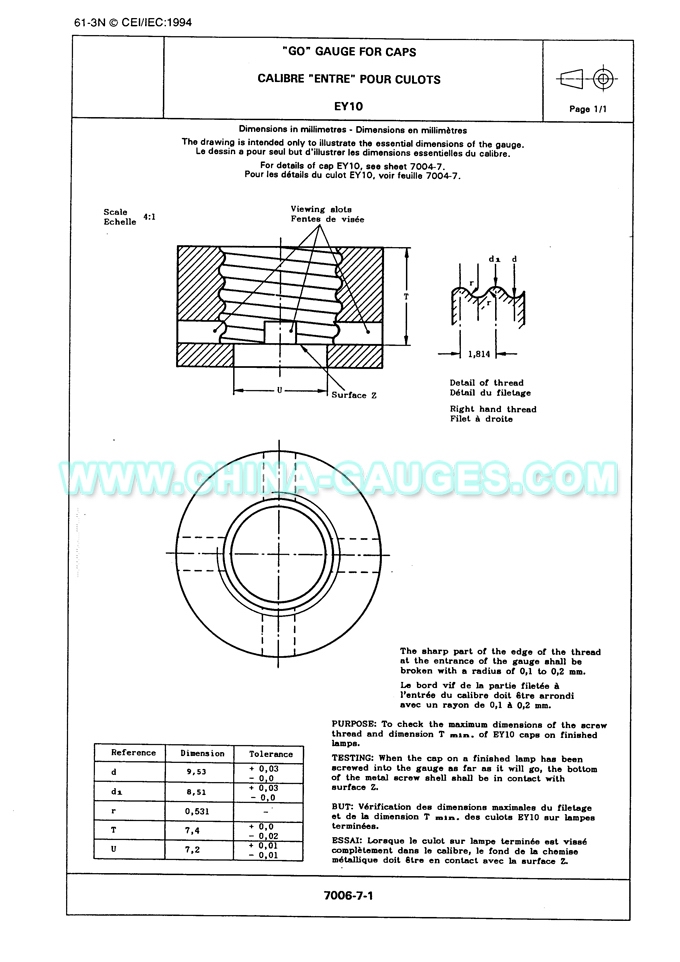

The sharp part of the edge of the thread at the entrance of the gauge shall be broken with a radius of 0,1 to 0,2 mm.

PURPOSE: To check the maximum dimensions of the screw thread and dimension T min. of EY10 caps on finished lamps.

TESTING: When the cap on a finished lamp has been screwed into the gauge as far as it will go, the bottom of the metal screw shell shall be in contact with surface Z.
