Lamp Cap Gauge

E26 Go No Go gauge of Finished Lamp Caps

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-E26GN
Made in China
Product description: E26 Lamp Cap Gauges According to IEC 60061.
INQUIRY

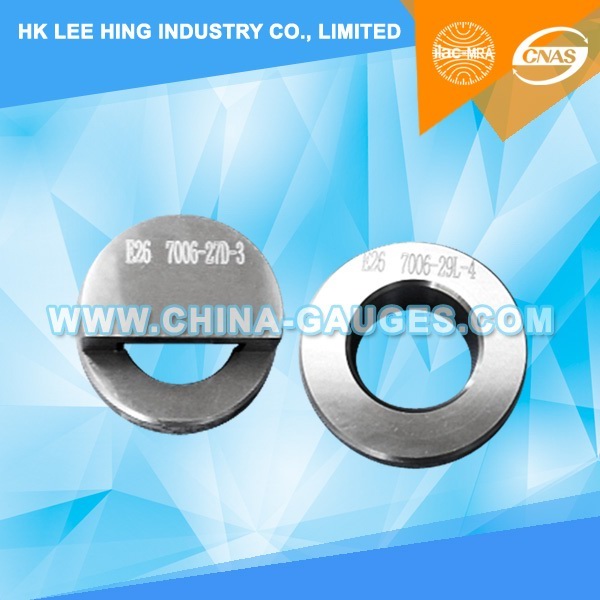

E26 Go No go gauges of Finished Lamp Caps Include:

1) IEC 60061-3: 7006-27D-3 E26 GO Gauges for Caps;

Purpose:
To check the ma*imum dimensions of the screw thread and dimension T1 minimum of E26 caps on finished lamps.

Testing:

When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall touch surface X. When the lamp is removed from the gauge, at least two full turns shall be required to disengage the threads.

2) IEC 60061-3: 7006-29L-4 E26 No Go Gauges for Caps;

Purpose:
To check the minimum outside (major) Dia. of the screw thread, dimension d, of E26 caps on finished lamps.

Testing:
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the central contact shall not project beyond surface X. Only the weight of the gauge itself shall be used in the test.
